Burgmann Type M3 M32 M37 Single Seals from China manufacturer - Ningbo Grandbroad Mechanical Seals Mfg.Co.,Ltd.

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Mh3U

Production Capacity: 10000

Delivery Date: 5days

Style: Mechanical Seal

Brand Name: GBSCO

Size: 10mm~80mm

Temperature: -20oC~200oC

Head: Carbon,Sic,Sintered SiC,TC.

Elastomer: NBR,EPDM,Viton,AFLAS

PACKING: CARTON

Means of Transport: Ocean,Land,Air

Packing: Carton

Standard or Nonstandard: Standard

Material: Silicone

Type: Burgmann Type M3,M32,M37

Pressure: <10kg/cm2

Vg: 10m/s

Seat: Ceramic,SiC,Sintered SiC,TC

Payment: T/T OR OTHERS

Single Spring Seal/Tapered Spring Seal
Equivalence to BurgmannType M3,M32,M37

Product Name :Burgmann Type M3 M32 M37 Single Seals

Equivalence to Burgmann Type M3 M32 M37 Single Seals

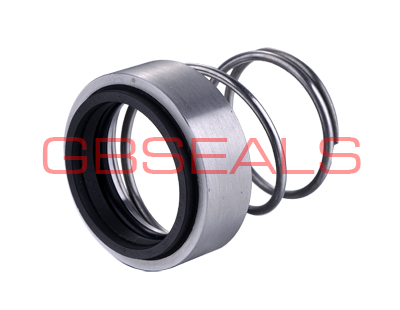

THE DETAIL PICTURE OF Burgmann Type M3 M32 M37 Single Seals

Appliacation Field:
1. Mechanical industry
2.Pulp and paper
3.Metallurgy
4.Oil &gas distribution
5.Waste water treatment
6.Power generator
7.Drinking,juice&milk prodution
8.Food and beverage industry

Appliacation Field:

1. Mechanical industry

2.Pulp and paper

3.Metallurgy

4.Oil &gas distribution

5.Waste water treatment

6.Power generator

7.Drinking,juice&milk prodution

8.Food and beverage industry

Operating Conditions:
Pressure:	Up to 10kg/cm2
Temperature:	-20oC~200oC
Speed:	Up to 10m/s

Materials:
Face:	SS, Carbon, SiC, SSiC, TC.
Seat:	Carbon, Ceramic, SiC, SSiC, TC.
O-Ring:	NBR, EPDM, Viton, FEP.
Metal:	304SS, 316SS.

Seat Compatibility:
Standard:	A.
Alternatives:	B, H, I.

THE WORKING DIMENSION OF Burgmann Type M3 M32 M37 Single Seals

D	D3	D13	L1n	L3	L22	L23
10	19	20	40	15.5	16.9	--
12	21	22	40	16.0	17.4	--
14	23	24	40	16.5	17.4	16.5
15	24	25	--	--	17.4	16.5
16	26	26	40	18.0	19.5	16.5
18	29	31	45	19.5	20.5	18.0
20	31	34	45	22.0	22.0	19.0
22	33	36	45	21.5	23.5	20.5
24	35	38	50	23.5	25.0	22.0
25	36	39	50	26.5	26.5	23.5
28	40	42	50	26.5	26.5	24.5
30	43	44	50	26.5	25.0	24.5
32	46	46	55	28.5	28.5	28.0
33	47	47	55	28.5	28.5	28.0
35	49	49	55	28.5	28.5	28.0
38	53	54	55	33.5	32.2	31.0
40	56	56	55	36.0	34.7	34.0
42	59	58	--	--	37.3	35.0
43	59	59	60	38.5	37.3	35.0
45	61	61	60	39.5	39.2	36.5
48	64	64	60	46.0	44.7	42.0
50	66	66	60	45.0	45.7	43.0
53	69	69	70	47.0	--	--
55	71	71	70	49.0	49.0	47.0
58	76	78	70	55.0	52.0	50.0
60	78	79	70	55.0	55.0	51.0
63	83	83	70	55.0	--	--
65	84	85	80	55.0	54.3	52.0
68	88	88	80	55.0	55.3	52.7
70	90	90	80	57.0	56.3	54.0
75	98	98	80	62.0	56.3	54.0
80	100	103	90	61.8	59.3	58.0

Equipments:

Process Of An Order

1. Please check product detailed information above.
A. Model/Shaft Size B. Face Material C. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your

enquiry.

3. When you place an order, our team will confirm with you about ordered product information, package,

method of payment and delivery, then a sales contract will be sent to you to confirm.

4. Packing: Cardboard box (absorbing wrapper inside).

5. How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer provide your express account, or our sales team find suitable express for buyers.

Others - We arrange to delivery goods to some place in China appoint by buyers.
